BRT-690 is a 5 loads wireless remote control switch kit which consist of a wireless controller (BRT-690R) a LIBERTY wall switch (BRT-690M) and a remote control (BRT-690T). The wall mount unit is designed for easy installation and retrofit directly fit into standard wall box which can avoid wiring issue with high cost. After configuring the wireless switch and remote control with the RF receiver box the receiver box (BRT-690R) can be controlled by the mobile switch (BRT-690M) within 20 meters.

• Features
• Views
• Specification
• Installation
• Operation
• Application
• Download

• Control over up to 4 loads;
  Easy to use. Four touch pads to turn on or turn off the load instantly;
  Good for fans and lamps
  ABS-V0 flame resistance material;
  US 120 series design and high quality build.

•
•

• BRT-690R RF On/Off control box requires both hot wire and neutral wire for installation.



  Fig.3 BRT-690M Wiring Diagram

  Warning:

  Please make sure power is turned off before starting installation!
  Fig. 3 shows the installation guide.
  There are three easy steps:

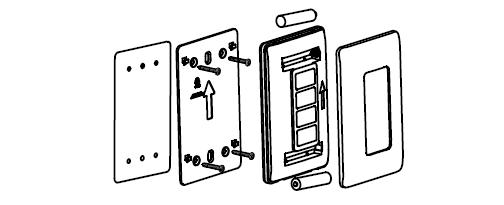

  Step one: Use a screwdriver to install the holder;
  Step two: Install the two batteries into the notches;
  Step three: Put back the front plate.

• Configuring method: After power on the RF receiver box a long beep means works normal. Press the button of the RF receiver box one time can control the load ON/OFF double press the button access to the Configuring mode. Then press the button on the mobile wall switch (BRT-691M) or the remote(BRT-609T) the controller unit sounds a long beep means Configuring successfully. Hold the button above 3 seconds long beep means clear all the matched objects. After finishing Configuration mobile wall switch and the remote control can be installed near the RF Receiver box within 20 meters to control the loads. Press one time to power on the load press again to power off the load. When power failure the unit will back to OFF state after electricity recovery.

  Caution:

  1. The unit can connect multiply loads after the RF Receiver box but the total load power can’t exceed 500W.
  2.Make sure you got the correct wires before installation. Wiring accordingly to the following diagram.

• BRT-690M keypad switch can be used for automatically turning on and/or turning off various loads such as fans lights appliances or other kinds of electrical equipment. They are perfect for saving energy and bringing convenience and safety to our daily life and work.

  They have wide applications at various locations such as homes hotels schools laboratories hospitals offices etc.

•
