Control over up to 5 loads;
Easy to use. Five touch pads to turn on or turn off the load instantly;
Good for fans and lamps;
ABS-V0 flame resistance material;
Classical 86 series design and high quality build.

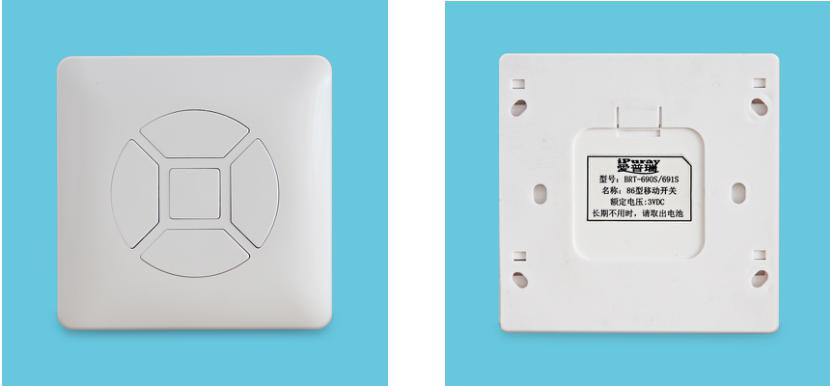

Fig. 1 and Fig. 2 show the front view and the back view of BRT-690S touch pad switch with respectively.
Fig.1 Front View Fig.2 Back View
As shown in Fig. 1 and Fig. 2 BRT-690S touch pad switch has 5 control touch pads.
BRT-690R RF On/Off control box requires both hot wire and neutral wire for installation.
Fig.3 BRT-690S Wiring Diagram
Warning:
Please make sure power is turned off before starting installation!

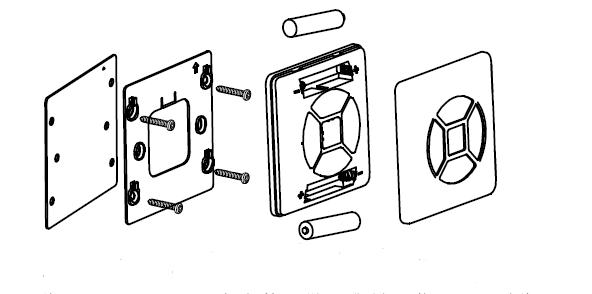

Fig. 3 shows the installation guide.
There are three easy steps:
Step one: Use a screwdriver to install the holder;
Step two: Install the two batteries into the notches;
Step three: Put back the front plate.
Configuring method: After power on the RF receiver box a long beep means works normal. Press the button of the RF receiver box one time can control the load ON/OFF double press the button access to the Configuring mode. Then press the button on the mobile wall switch (BRT-691S) or the remote(BRT-609T) the controller unit sounds a long beep means Configuring successfully. Hold the button above 3 seconds long beep means clear all the matched ob
After finishing Configuration mobile wall switch and the remote control can be installed near the RF Receiver box within 20 meters to control the loads. Press one time to power on the load press again to power off the load. When power failure the unit will back to OFF state after electricity recovery.
Caution:
1. The unit can connect multiply loads after the RF Receiver box but the total load power can’t exceed 500W.
2.Make sure you got the correct wires before installation. Wiring accordingly to the following diagram.
BRT-690S keypad switch can be used for automatically turning on and/or turning off various loads such as fans lights appliances or other kinds of electrical equipment. They are perfect for saving energy and bringing convenience and safety to our daily life and work.
They have wide applications at various locations such as homes hotels schools laboratories hospitals offices etc.
