BRT-K380 Vacant A/C Auto OFF System

date:2017-08-24 14:10

BRT-K380 is an auto off A/C system with the combination of door sensor and PIR sensor.
It’s widely used to auto off the A/C in working and living environment.
When the door opens it will activate the door sensor and the A/C
will be auto OFF without vacancy in 1 minute.

When the door closed the A/C will be auto OFF
without vacancy in N minutes.( N =1 2 5 10 15 20 25 30minutes.)

  • Features
  • Views

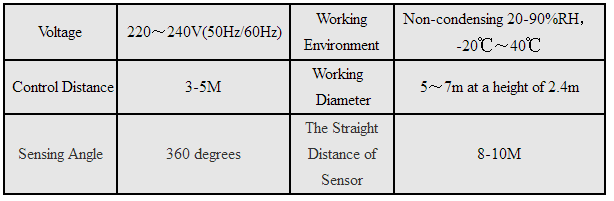

  • Specification
  • Installation
  • Operation
  • Application
  • Download
  •         BRT-K380 Vacant A/C Auto OFF System is made up of two parts: PIR Remote Control and RF Door Sensor. As the following Fig.2 Fig.3 and Fig.4;

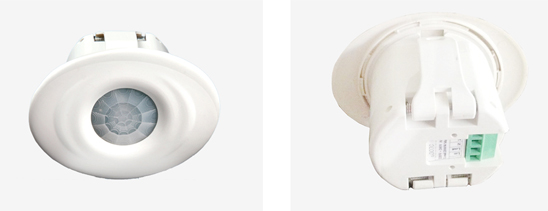

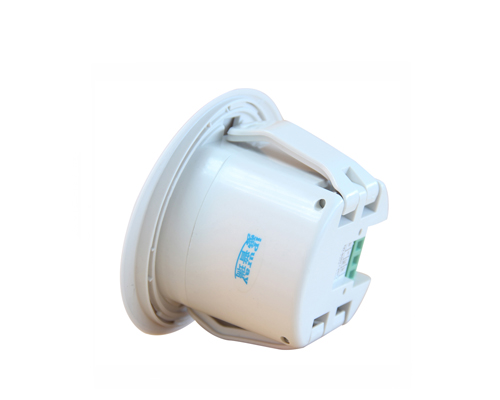

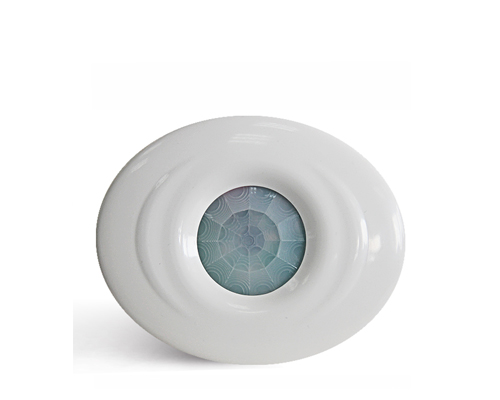

                                 Fig.2 The front of PIR Remote for A/C.                            Fig.3 The back of PIR Remote for A/C



            RF Door Sensor is made up of two parts: Magnetic Suction Plate and RF Sensor as following Fig.4:

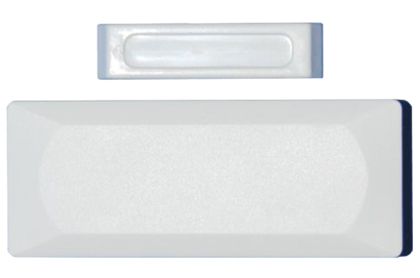

                                                                                            Fig .4 RF Door Sensor



            Product Usage:

            1) When the detected area is occupied the A/C will remain the status as shown in Fig. 5







                                                                                                                 Fig.5

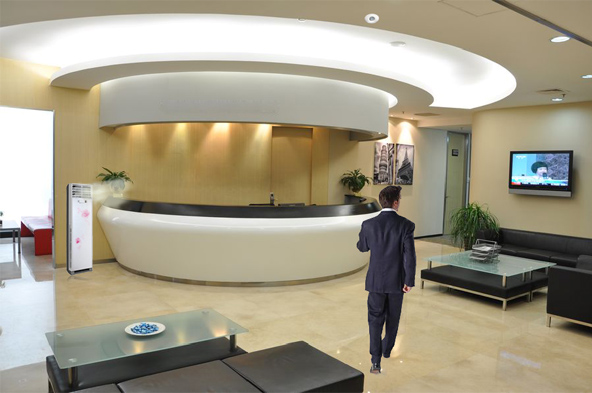

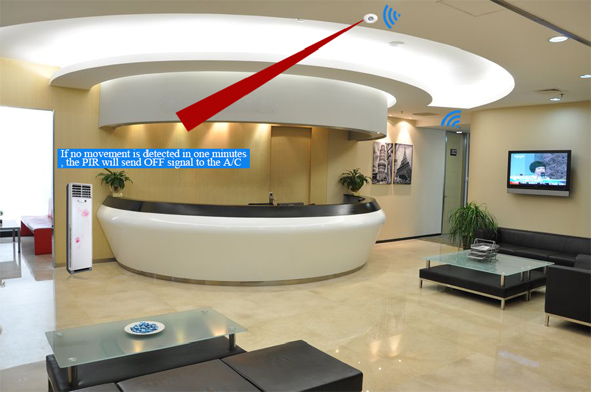

            2) If the door opens and no movement is detected in one minute the PIR will send OFF signal to the A/C. Shown as fig. 6









                                                                                                                   Fig.6

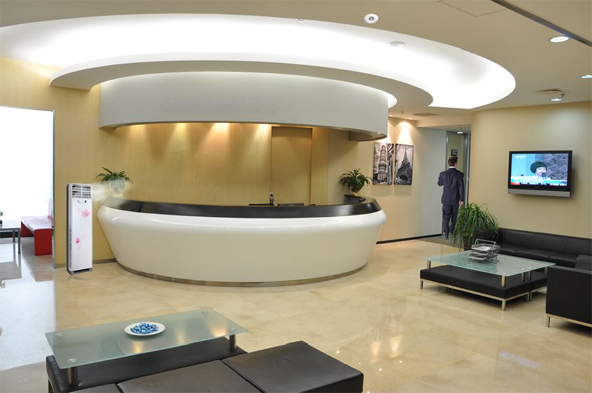

            3) If the door closed and no movement is detected in one minute the PIR will send OFF signal to the A/C. Shown as fig. 7









                                                                                                                     Fig.7

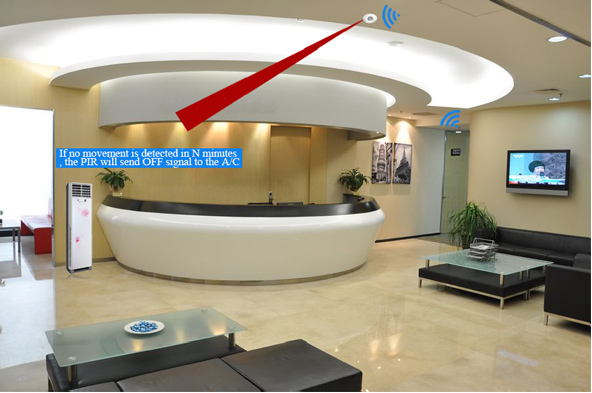

    If no movement is detected in N minutes the PIR will send OFF signal to the A/C. If there is occupancy during the period the PIR sensor will continue the detecting until auto off the A/C. The system achieves people oriented and auto-control.

  •         PIR Remote Control has two ways of installation. Please refer to Fig.8 and Fig.9 for details.

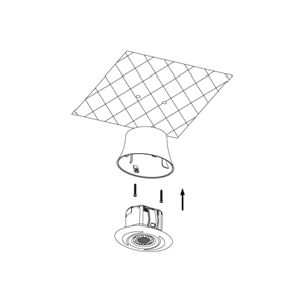

            Method one: Drill two holes in the ceiling and fix the housing onto the ceiling using two screws.The switch can be fit into the housing easily. (as shown as Fig.8).

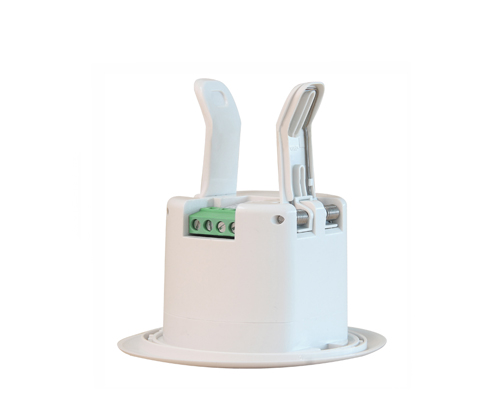

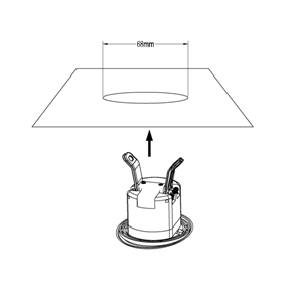

            Method two: Make a hole of 68mm in diameter in the ceiling straighten the spring loaded levers and insert the switch into the hole. The switch can be held against the ceiling. (as shown as Fig.9).



                                                 Fig. 8                                                                                                    Fig. 9



            RF Door Sensor has two ways of installation. Please refer to Fig.10 and Fig.11 for details.

            Method one: Install magnetic suction plate on the top frame of the door and install wireless sensor on the top of the door. When the door is closed sensor and magnetic suction absorb the wireless signal is rapidly transmitted to PIR remote control. When the door is closed sensor and magnetic suction separate the wireless signal is transmitted to PIR remote control. (as shown as Fig.10)

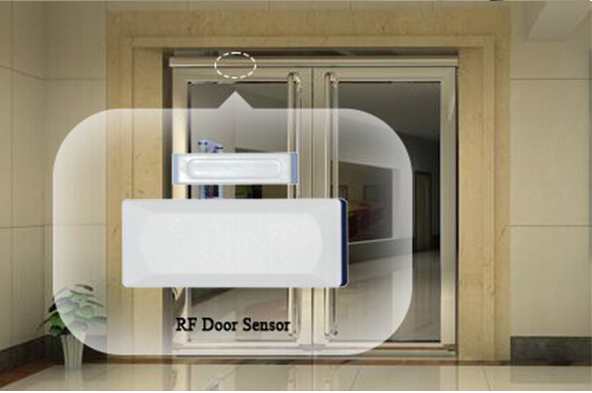

                                                                                     Fig.10 Sensor on the Top of the Door



            Method two: Install magnetic suction plate on the of the door frame and install wireless sensor on the broadside of the door. When the door is closed sensor and magnetic suction absorb the wireless signal is rapidly transmitted to PIR remote control. When the door is closed sensor and magnetic suction separate the wireless signal is transmitted to PIR remote control. (as shown as Fig.11)

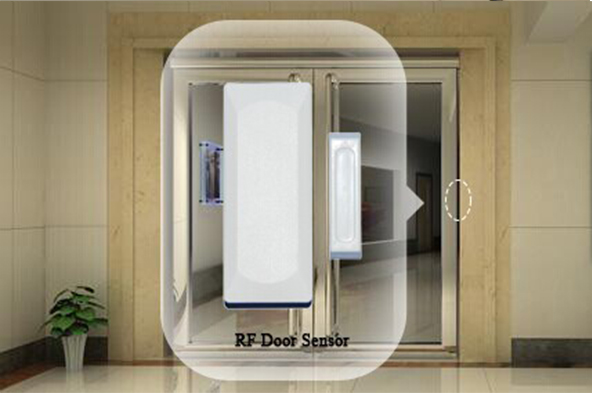

                                                                               Fig.11 Sensor on the broadside of the Door

  •

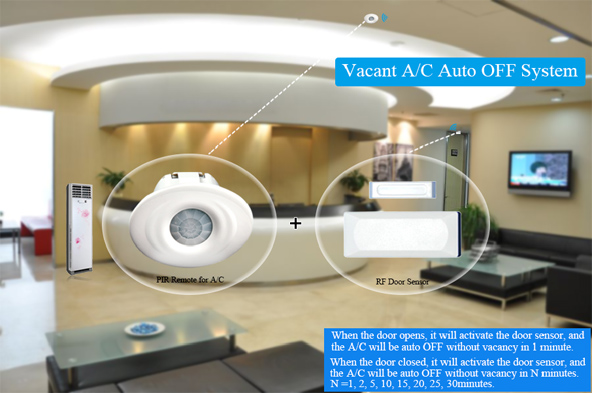

                                                   Fig.1   Application Scene of Vacant A/C Auto OFF System
