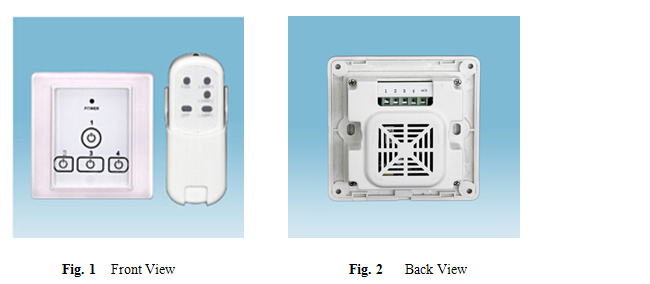

Fig. 1 and Fig. 2 show the front view and the back view of BRT-611 glass touch button timer

  switch with remote control respectively.

  As shown in Fig. 1 and Fig. 2 BRT-611 glass touch button timer switch set includes a wall mount

  unit and an IR remote control. The wall mount unit has 4 control touch buttons and an LED power

  indicator and wiring terminal blocks on the back. The remote control has five control buttons and

  a wall mount bracket.

BRT-611 glass touch button timer switch only require hot wire for installation:

             Hot wire (ACL):      Coming from the power line with 220V; and

             Load wires:             Going to the loads.

  Warning: Please make sure power is turned off before starting installation!

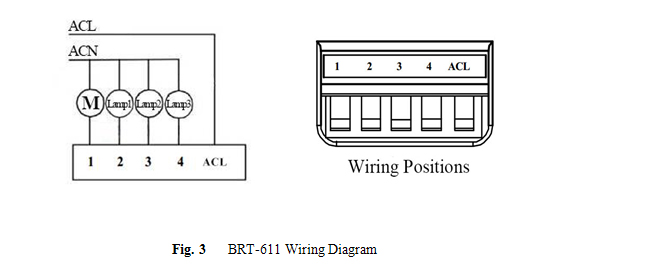

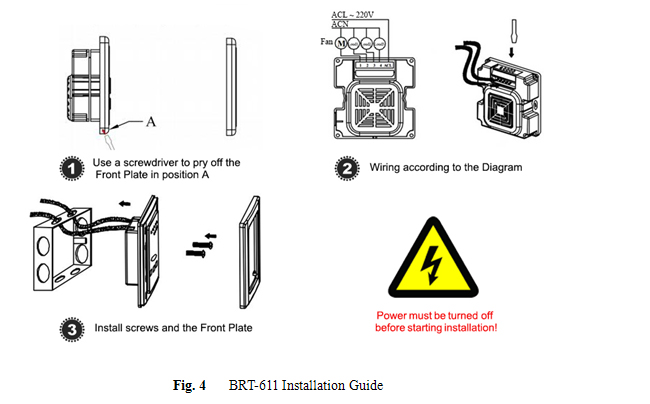

  Fig. 3 shows the wiring diagram and Fig. 4 shows the step-by-step installation instructions. There

  are three easy steps:

             Step one:      Use a screwdriver to pry off the front plate in position A;

             Step two:     Wiring according to the diagram and the labelled ports of the switch; and

             Step three:   Install the switch to the wall box using screws and put back the front plate.

BRT-611 glass touch button timer switch can be controlled either using the touch buttons of the

  wall mount unit or the remote control as shown in Fig 5. After BRT-611 is powered on the LED

  on the front panel will be on and the unit is ready to control the loads.

  Control using wall mount unit:  There are 4 touch buttons on the front panel. Pressing each

  touch button will turn on or turn off the fan or the lamp.

           #1:     Pressing once will turn on the fan and pressing again will turn off the fan;

           #2:     Pressing once will turn on lamp 1 and pressing again will turn off lamp 1;

           #3:     Pressing once will turn on lamp 2 and pressing again will turn off lamp 2; and

           #4:     Pressing once will turn on lamp 3 and pressing again will turn off lamp 3.

  Also pressing a touch button to turn on a load will cause the touch button to flash briefly.

  One touch button operation to turn off all the loads in the same time: Pressing and holding touch

  button #1 for 2 seconds will turn off all the loads in the same time.

  Control using remote:  There are 5 buttons on the remote. Pressing each button will turn on or

  turn off the fan or turn on or turn off the lamp.

           FAN:            Pressing once will turn on the fan and pressing again will turn off the fan;

           LAMP 1:      Pressing once will turn on lamp 1 and pressing again will turn off lamp 1;

           LAMP 2:      Pressing once will turn on lamp 2 and pressing again will turn off lamp 2;

           LAMP 3:      Pressing once will turn on lamp 3 and pressing again will turn off lamp 3; and

           OFF:             Pressing this button will turn of all the loads in the same time.

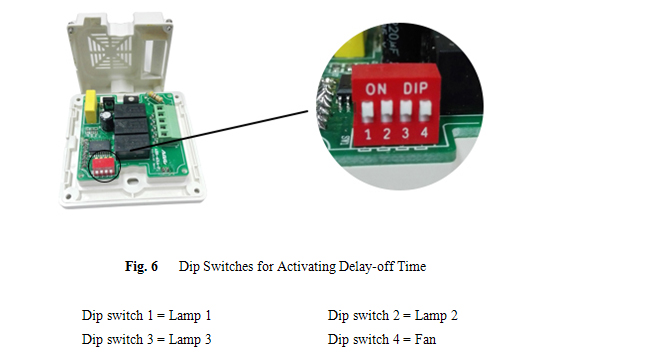

  Set up delay-off function:  Use a screwdriver to pry off the back cover to access the dip

  switches as shown in Fig. 6. Switching a dip switch to on will set up the corresponding load for

  delay-off operation respectively.

  The delay-off time is set at 30 seconds at factory. Please talk to our sales representative if other

  customized settings are required.

  Activate delay-off function:  Once the delay-off function is set up touching the button once will

  turn on the load and touching the button the second time will trigger delay-off for the load. The

  button will blink until the load is automatically turned off after 30 seconds.

  During the delay-off time countdown touching the keypad will turn off the load immediately.

BRT-611 glass touch button timer switch can be used for automatically turning on and/or turning

  off various loads such as fans lights appliances or other kinds of electrical equipment. They are

  perfect for saving energy and bringing convenience and safety to our daily life and work. The

  remote control set is especially handy.

  They have wide applications at various locations such as homes hotels schools laboratories

  hospitals offices etc.
