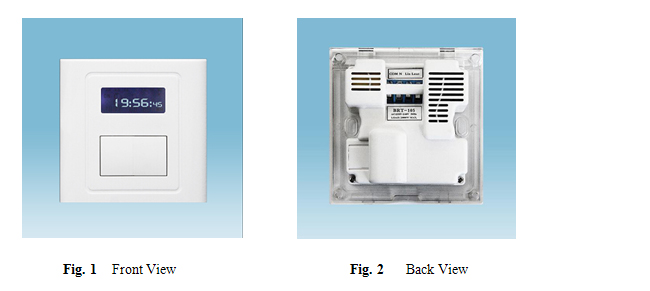

Fig. 1 and Fig. 2 show the front view and the back view of the wall mount unit of BRT-605 timer

  switch respectively.

  As shown in Fig. 1 the wall mount unit of BRT-605 timer switch has an LCD display and an

  On/Off buttons in the front. The LCD display shows the current time and the current status of the

  switch. The On/Off button is used for turning on or turning off a load.

  When the On/Off button is pressed and the display shows On

           The load will be turned on immediately; and

  When the On/Off button is presses again and the display will show Off

           If there is no delay off time being set the load will be turned off immediately; or

           If there is delay off time being set the load will be turned off only after the preset delay off

           time runs out. Meanwhile the display will show a “bell” sign. Press the On/Off button will

           cancel the delay off operation and turn off the load immediately.

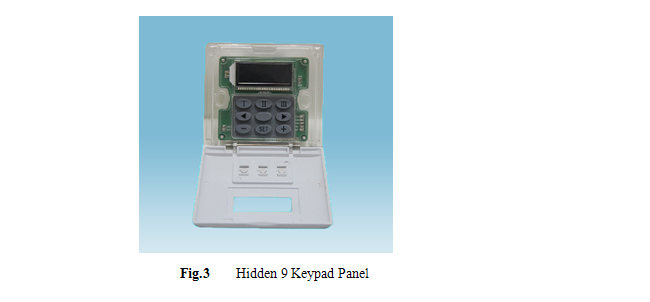

  As shown in Fig. 3 the front plate can be flipped down from the top edge. A 9 keypad panel

  hidden behind the front plate is used for setting up the timer. Please refer to “BRT-605 Timer

  Switch Setup” for details.

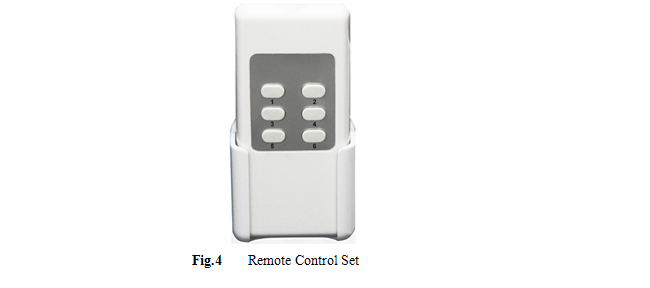

  Fig. 4 shows the remote control set. Each of the buttons can be used as an on/off button. Although

  there are 6 buttons on the remote only one button is needed to control one wall mount unit. The

  remote set can be set to control up to six BRT-605 wall mount units. Please refer to “BRT-605

  Timer Switch Setup” for details.

 The  wall  mount  unit  of  BRT-605  timer  switch  requires  both  hot  wire  and  neutral  wire  for

  installation:

               Hot wire (ACL):            Coming from the power line with 220V;

               Neutral wire (ACN):      Usually coming with the hot wire;

               Load wires:                   Going to the load.

  Warning: Please make sure power is turned off before starting installation!

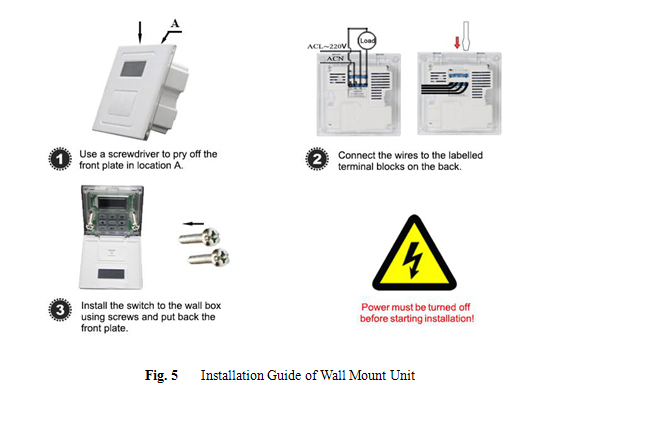

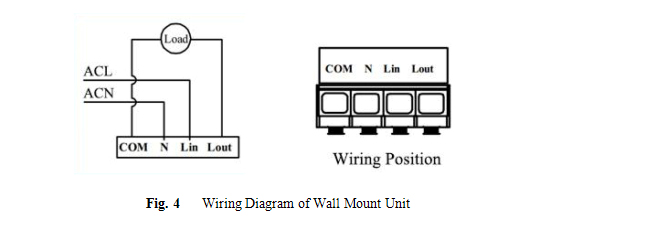

  Fig. 4 shows the wiring diagram and Fig. 5 shows the step-by-step installation instructions. There

  are three easy steps:

             Step one:      Use a screwdriver to pry off the front plate in position A;

             Step two:     Wiring according to the diagram and the labelled ports of the switch; and

             Step three:    Install screws and front plate.

1.    Following the wiring diagram and Installation Guide to set up the wall mount unit and power

           it with 220 voltages.

  2.    Flip down the front plate from the top edge.

  3.    Set up Time and Date:  Press the SET button the displayed hours will flash and then press

           – or + to adjust the hours. Press the SET button again the displayed minutes will flash and

           then press – or + to adjust the minutes. Press the SET button again the displayed date will

           flash and then press – or + to adjust the date. Finally press the SET button to finish and the

           settings are saved.

  4.    Set up Delay off Time:  The longest delay off time is 30 minutes. Press the Ⅱbutton to set

           the minutes and then press button ◁ or ▷ to adjust the minutes. Press the Ⅱbutton again to

           set the seconds and then press button ◁ and ▷ to adjust the seconds. Finally press and hold

           the Ⅱbutton to save the settings or the settings will be saved automatically if there is no

           keypad operation for 15 seconds.

  Once the settings are finished flip up and close the front plate. The delay off time can be

  deleted following Step 2 above and Step 5 below.

  5.    Delete the Delay off Time setting:   Press theⅡbutton to set the minutes to 00 using – or

           + and press theⅡbutton again to set the seconds to 00 using – or +.  The switch will just

           have a basic ON/OFF function.

  At this point the wall mount unit is ready to control the load. In order to control the load remotely

  using a remote set the remote set needs to be synchronized with the wall mount unit.

  6.    Install one 12V 23A battery into the remote set.

  7.    Synchronize the wall mount unit with the remote:  Flip down the front plate from the top

           edge. Press “III” button for 2 seconds until the display will show . Then press one of

           the 6 buttons on the remote until   disappears. This button is now set up to control the

           wall mount unit specifically. The synchronization process can last up to 20 seconds.

BRT-605 timer switch kit can be used for automatically turning off all kinds of loads such as fans

lights appliances or other kinds of electrical equipment. They are perfect for saving energy and

bringing convenience and safety to our daily life and work. The remote set is especially handy.

The elegant design of BRT-605 timer switch makes it suitable for wide applications at various

locations such as homes schools laboratories hospitals offices etc. especially for luxurious

hotels and high-grade villas.
