BRT-803Sound Control Switch with Potentiometer Adj

date:2017-08-18 11:20

  BRT-803 is a timer switch integrated with a sound sensor. It automatically turns on the load when

  the sound level is above a preset threshold and keeps the load on until a delay-off time runs out.

  It is designed for easy installation and retrofit directly fit into standard wall box where both hot

  wire and neutral wire are present.

  • Features
  • Views
  • Specification
  • Installation
  • Operation
  • Application
  • Download
  • Loads up to 800W;
    Adjustable delay-off time from 10 seconds to 15 minutes;
    Ambient light override. Automatically measures the ambient light level,
    and there is no sound trigger on when brightness is above a threshold which is adjustable by end users;
    Good for all kinds of loads;
    ABS-V0 flame resistance material; and
    Classical 86 series design and high quality build.

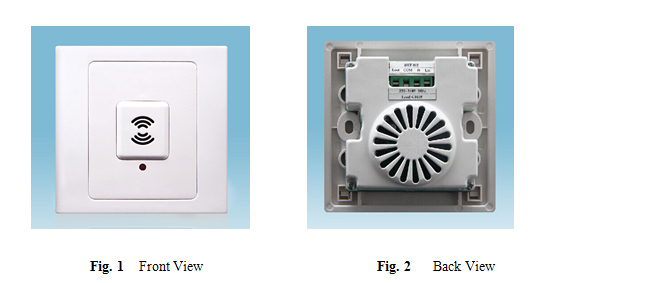

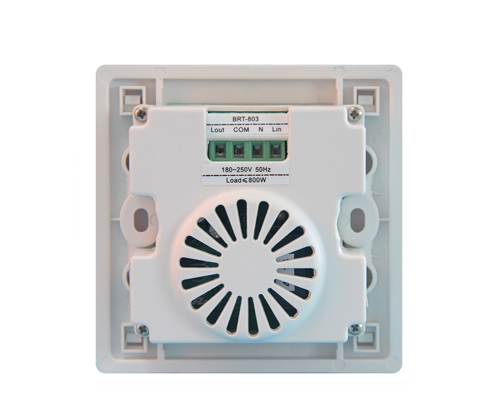

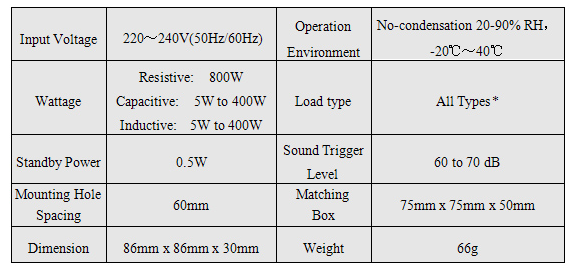

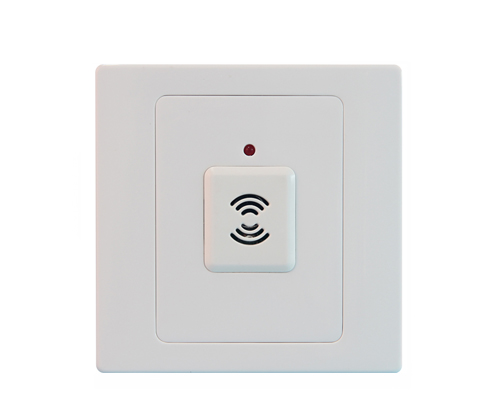

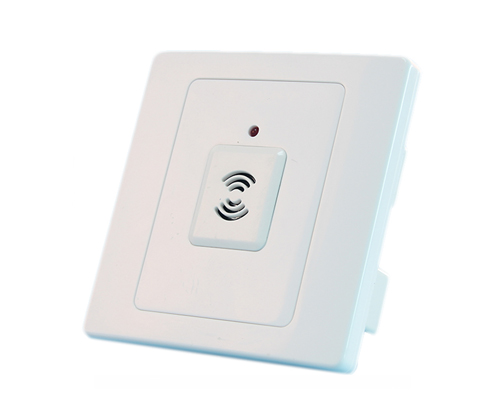

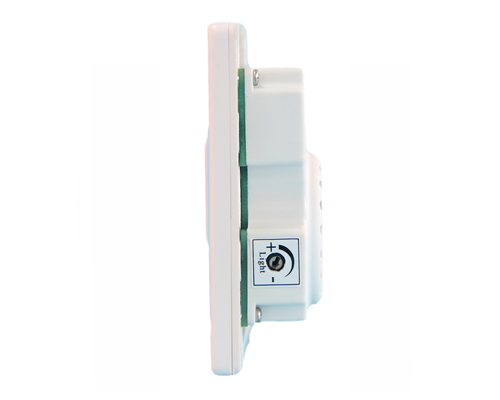

  •   Fig. 1 and Fig. 2 show the front view and the back view of BRT-803 timer switch respectively.


      The switch has a sound detector and a light detector on the front tuning screws for setting up

      delay-off time and ambient light override on two sides and terminal blocks for wiring on the back.

  • BRT-803 timer switch only requires both hot wire and neutral wire for installation:

            Hot wire (ACL):          Coming from the power line with 220V;

            Neutral wire (ACN):    Usually coming with the hot wire; and

            Load wires:                  Going to the load.



      Warning: Please make sure power is turned off before starting installation!

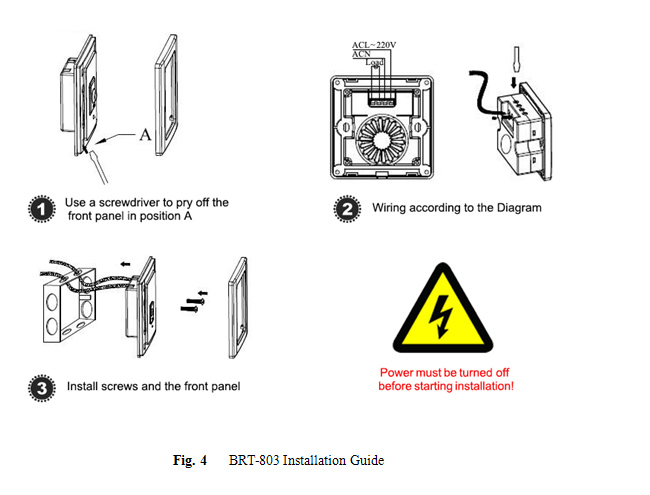

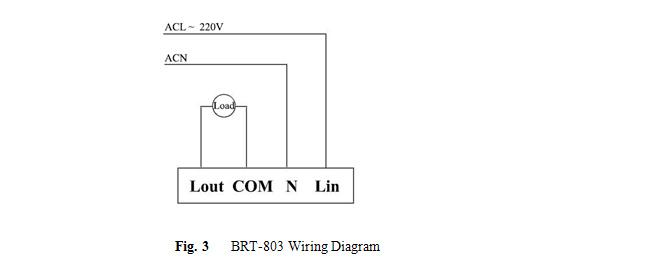

      Fig. 3 shows the wiring diagram and Fig. 4 shows the step-by-step installation instructions. There

      are three easy steps:

                Step one:       Use a screwdriver to pry off the front plate in position A;

                Step two:      Wiring according to the diagram and the labelled ports of the switch; and

                Step three:     Install screws and front plate.


  •  Once properly wired BRT-803 timer switch needs two adjustments for the first time operation: set

      up the delay-off time and set up the ambient light override.


      1.    Adjust the delay-off time

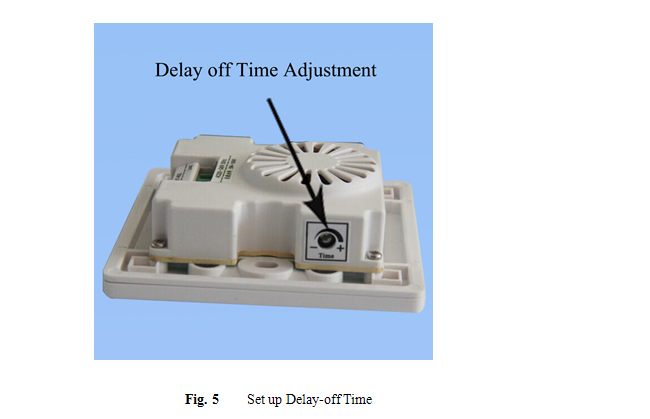

      There is a tuning screw on one side of BRT-803 timer switch. Use a crew driver to tune this screw

      to adjust the delay-off time as shown in Fig. 5. The delay-off time can be set from 10s  to  15



      2.    Adjust the ambient light brightness threshold

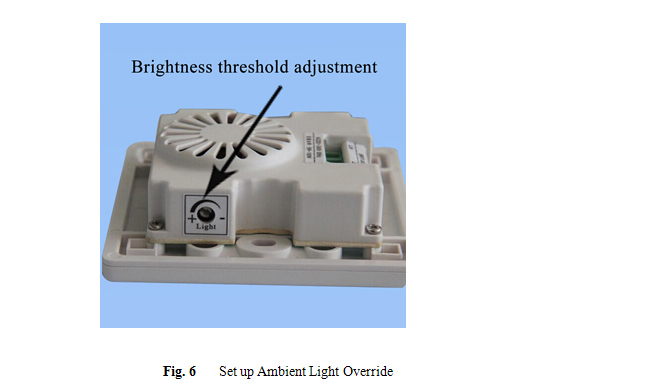

      There is a tuning screw on another side of the switch. Use a crew driver to tune this screw to

      adjust the ambient light override threshold brightness as shown in Fig. 6.


      Please note that BRT-803 timer switch needs 2 minute warm-up time before it can work normally.

      And it is recommended that the switch not be used in noisy environment.

  •   BRT-803 timer switch can be used for automatically turning on and turning off various loads on

      sound triggers. Its high power rating makes it especially suitable for larger loads.
