u105 WiFi Delay off Switch for 1 Load

date:2017-08-08 10:07

u105 is a Wifi Delay off Switch for 1 Load which controls power ON/OFF. Without changing the existing wiring it can not only manually control through the panel button but also direct controlled by Smartphone. Delay off time setting adjustable It can be used to control electronic equipments which are required ON/OFF automatically and applied to the lighting of living room office and meeting room.

  • Features
  • Views

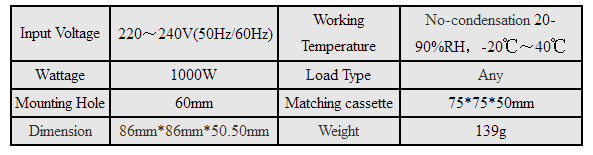

  • Specification
  • Installation
  • Operation
  • Application
  • Download

  • Operates on L&N Input and fits in a standard wall box;
    With LCD Display Adjustable Delay off time setting;
    Good for AC motors and all types of lights;
    Smartphone direct control or front panel button control optional;
    Wallplate uses flame resistance ABS-V0 material for safety;
    Classical 86 series design and easy installation.

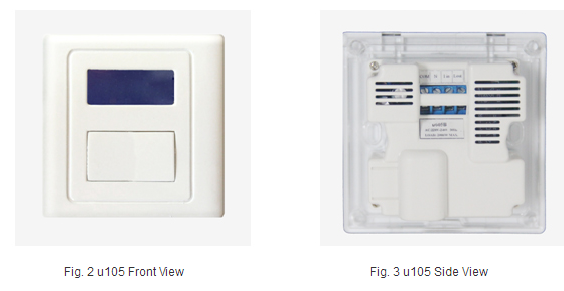

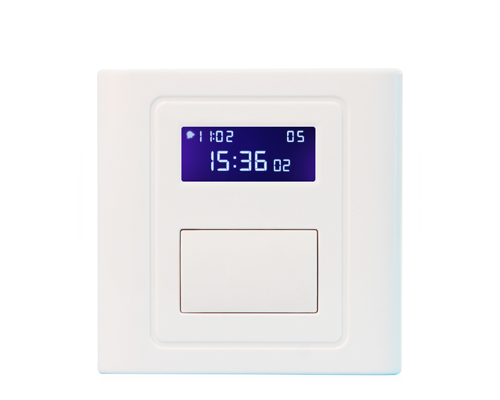

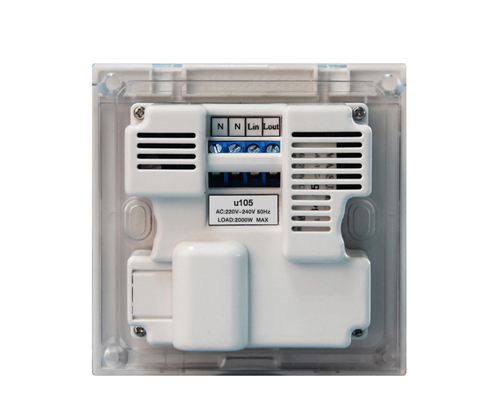

  • u105 Wifi Delay off Switch for 1 Load has a LCD display with one button on its front side. It also have terminal blocks on its back side.
  •

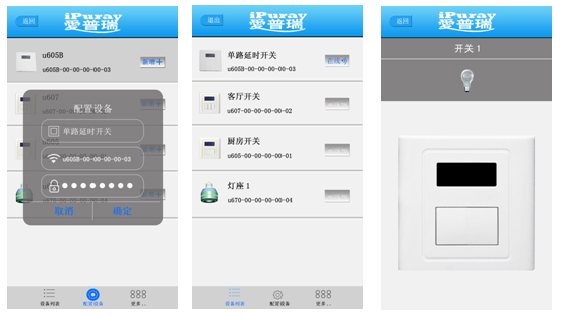

  • 1. Download an Android APK and launch the program.
    A password matching the Wifi Delay off Switch for 1 Load needs to be entered for the first sign-in.

    2. Once the password is confirmed and gain access to the load type selection interface click to select the right load type to be controlled.
    3. Once load type is selected and enters the control interface click the icon to control the load. See above Fig. c.



  • Once power on u105 Wifi Delay off Switch for 1 Load the home appliance or other electronic equipments are not only controllable by a Smartphone but also can have their operation status displayed by a Smartphone. u105 Wifi Delay off switch for 1 load can control many kinds of appliances such as Water Heater Refrigerator Fan Air-conditioner Ventilator Desk Lamp Floor Light etc.
