WiFiu705 Speed Control Switch

date:2017-08-25 15:36

u705 is a WiFi Speed Control Switch which can control the power ON/OFF.
Without changing the existing wiring it can be easily replaced
the original wall switch have memory and temperature protect function.
It can be used to control draught fan dynamo and water pump.

  • Features
  • Views
  • Specification
  • Installation
  • Operation
  • Application
  • Download
  • Operates on L&N inputs and fits in a standard wall box;

    With Temperature Override Protection;

    Memory Function: Lights turn on at last brightness setting;

    Smartphone direct control or Automatic ON/OFF

    With Adjustable Min Speed function;

    Wallplate uses flame resistance ABS-V0 material for safety;

    Classical 86 series design and easy installation.







                                           Fig. 1 u705 WiFi Speed Control Switch Controlled Directly by a Smartphone



    without distance limited control;

    Colorful touch screen display with friendly user interface;

    Bi-directional communication with real time display of device status; and

    Smartphone as the control device and no need for additional remote controls.

  • Please check the front view and back view of u705 WiFi Speed Control Switch.

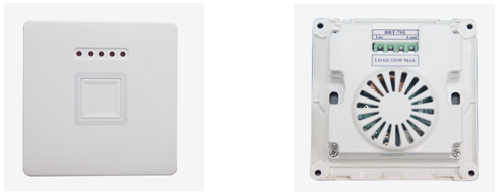

                 Fig. 2 u705 Front View                         Fig. 3 u705 Back View


  • The Installation steps for u705 WiFi Speed Control Switch are as shown in Fig.5 Fig.6 and Fig.7





                                                      Fig.5 Using a screwdriver gentle pries the front panel in position A

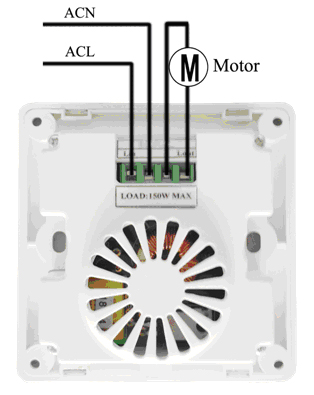

                                                                            Fig.6 Wiring according to the Diagram

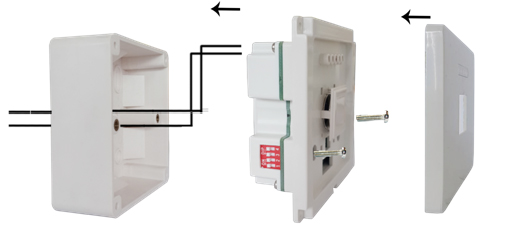

                                                                                        Fig.7 Install screws and the front panel





    Smartphone Interface Installation and Operation:

    Download Smartphone APK after installing u705 WiFi Speed Control Switch

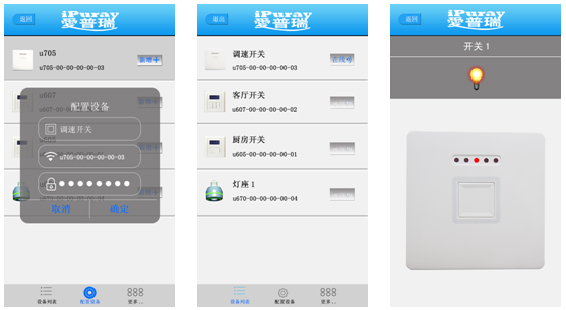

  • 1. Download an Android APK and launch the program. A password matching the WiFi Speed Control Switch needs to be entered for the first sign-in. See above Fig. a.

    2. Once the password is confirmed and gain access to the load type selection interface click to select the right load type to be controlled. See above Fig. b.

    3. Once load type is selected and enters the control interface click the icon to control the load. See above Fig. c.

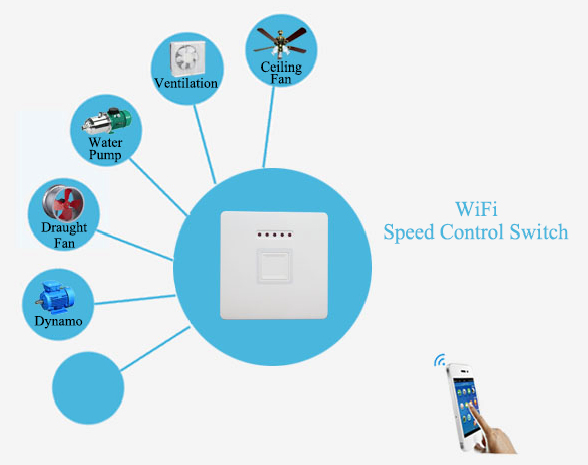

  • Once plugged into an u705 WiFi Speed Control Switch home appliances or other electronic equipments are not only controllable by a Smartphone but also can have their operation status displayed by a smart phone. u705 WiFi Speed Control Switch can control many kinds of appliances such as Fan Ceiling Fan Ventilator draught fan dynamo and water pump etc. Fig. 4 shows typical applications of u705 WiFi Speed Control Switch.







     Fig. 4
