uCF281 is a ceiling fan remote controller which has a WiFi module built-in so that
the ceiling fan can be remotely controlled by a smart phone.
Good for all ceiling fans;
Two load outputs one for controlling the fan and another one for controlling the lights;
Three fan speeds;
Precise timer function;
Bidirectional communication enabling status display of fans lights and timer;
Rectangular shape which can easily fit into the canopy of ceiling fans;
ABS-V0 flame resistance material; and
Elegant design and high quality build.

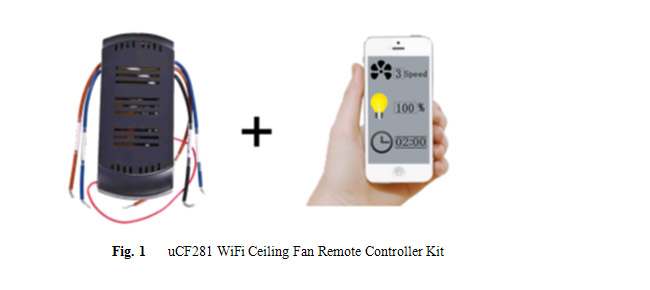

uCF281 WiFi ceiling fan remote controller kit consists of a rectangular shaped receiver and a
smart phone APP as shown in Fig. 1
l A rectangular receiver that can receive control commands from a smart phone. This
receiver uses existing wiring and can easily fit into the canopy of ceiling fans; and
l An APP to be loaded into a smart phone. This APP will turn a smart phone into a remote
control device with friendly user interface.

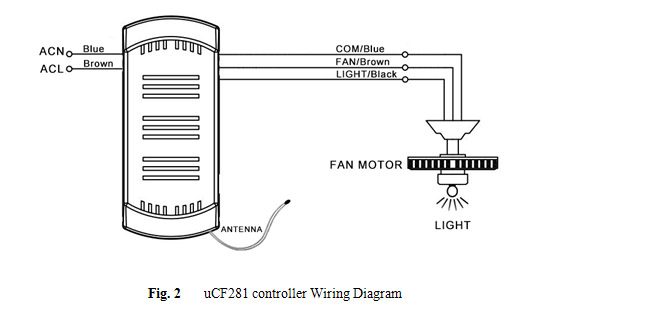

The controller has its all connection wires clearly labelled as shown in Fig. 2.
AC-L: Connected to the hot wire of power supply
AC-N: Connected to the neutral wire of power supply
Light: Connected to the lights
Motor: Connected to the fan
COM: Connected to the neutral wire of the fan and/or lights
Warning: Please make sure power is turned off before starting installation!

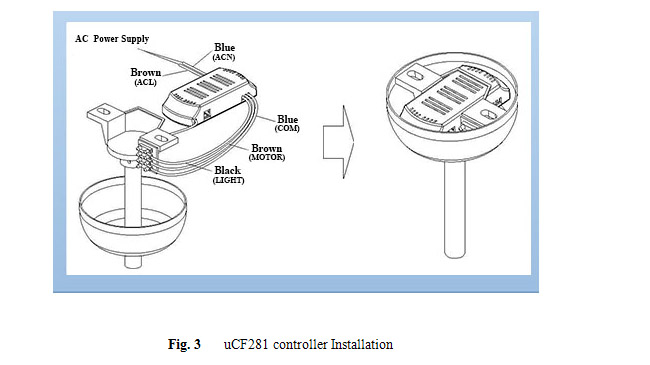

Once properly wired the uCF281 controller can be installed into the canopy of a ceiling fan as
shown in Fig. 3.
First please turn on the power supply to the ceiling fan and lights. If there is another switch to
control the fan speed and the lights please set the switch to the highest fan speed and turn on the
lights. Follow the instruction comes with the ceiling fan remote controller to download a smart
phone APP from the designated website. The steps of setting up the APP are as follows:
1.1 Turn on the power to the ceiling fan. Load the APP into smart phone and launch the APP;

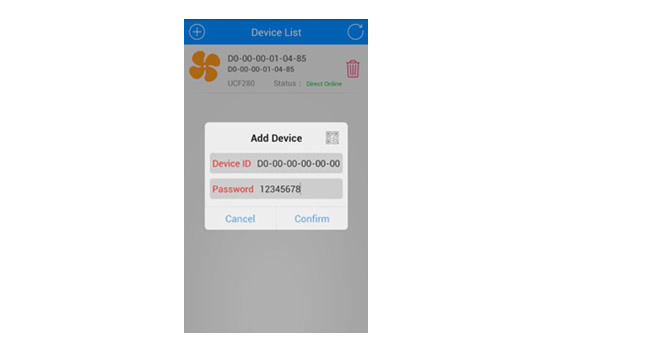

1.2 Click “Add Device” button enter Device ID and Password. Every controller has a
unique ID assigned at factory and the default Password is 1234567. The password can be changed
by the user once the initial setup and operation are completed.
1.3 Press “Confirm” button to li
show “Device Online”. In case “Device Online” is not shown press the Refresh button (a circle
with an arrow at the top-right-corner). Once “Device Online” is confirmed the ceiling fan and

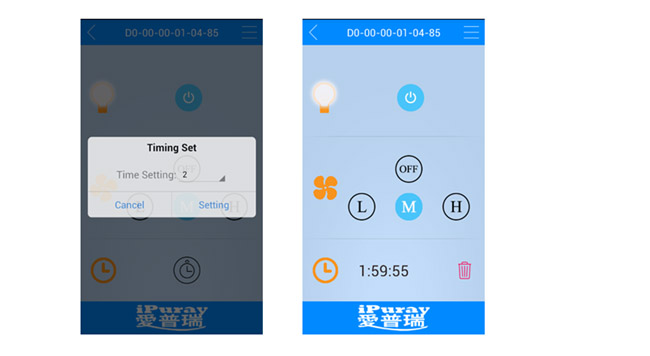

lights are ready to be directly controlled by the smart phone in an interface as follows:
The control buttons are self-explanatory. The are used for turning on or tuning off lights turning
on ceiling fan at low medium or high speed or turning off ceiling fan and setting up timer.
1.4 The ceiling fan can also be controlled by a smart phone via Internet. The fan needs to
be li

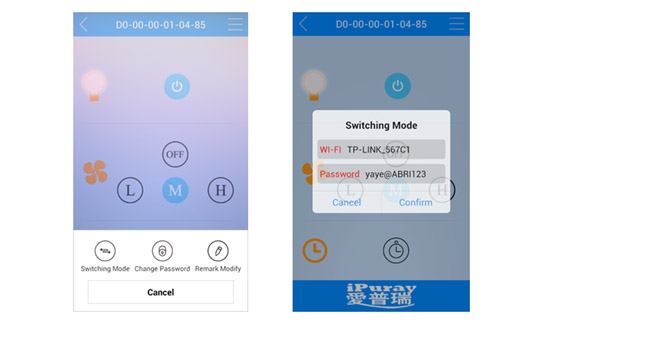

Press the Menu button (3 horizontal bars at the top-right-corner) to bring up a setup menu. Press
“Switching Mode” button to bring up the router setup window. Enter the name of your router and
Password of your router. Press “Confirm” button to li

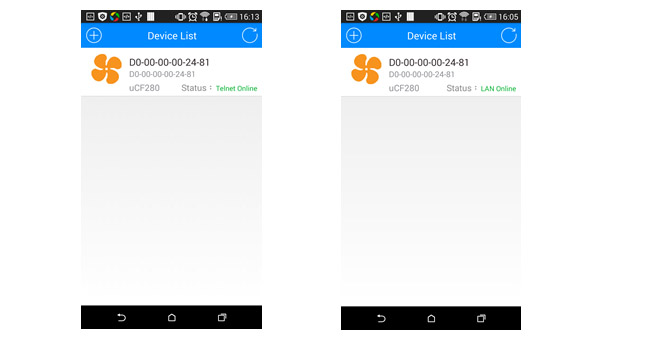

Pressing the Refresh button (a circle with an arrow at the top-right-corner) will update the status.
If the status shows“Telnet Onlineor ”“LAN Online” the fan has been successfully li
router. When the router is connected to the internet the status will show “Telnet Online”and the
fan can be controlled anywhere as long as internet access is available. When the router is not
connected to the internet the status will show “LAN Online”and the fan can only be controlled
within the coverage range of the router.

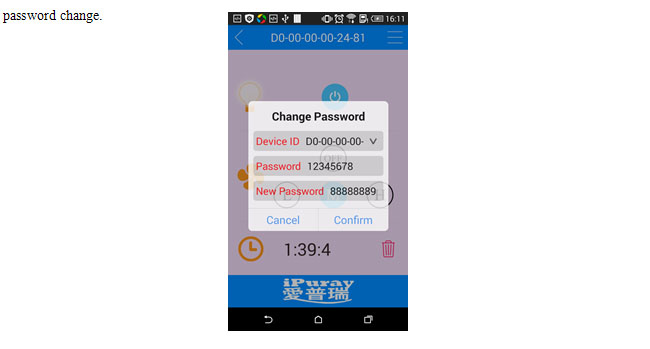

1.5 Password Change: Press the Menu button (3 horizontal bars at the top-right-corner) to gain
access to the setup menu and then press “Change Password” button to bring up a window for

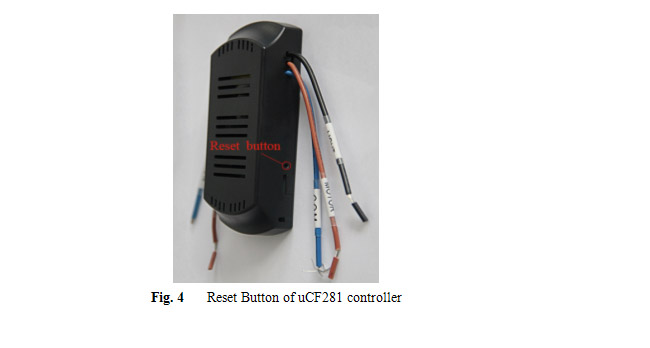

1.6 There is a reset button on the side of uCF281 ceiling fan remote controller as shown in Fig. 4.
Pressing this button for 5 seconds will restore all the settings to the default factory values.
uCF281 WiFi ceiling fan remote controller are good for all kind of ceiling fans even fo retrofitting an older ceiling fan.
It can bring convenience and ease to our daily life and work.
They have wide applications at various locations such as homes restaurants conference rooms theatres etc.
