BRT-690R RF On/Off Control Box

date:2017-08-08 10:57

BRT-690R is an RF On/Off control box which can be controlled by optional remote controller or LIBERTY remote switches. It can be installed near the load or used as an in-line device hidden in a safe place of the load. Any load can be easily converted into an RF controllable one by adding a BRT-690R RF On/Off control box.

  • Features
  • Views
  • Specification
  • Installation
  • Operation
  • Application
  • Download
  • Compact size;
    RF remote controlled by up to 20pcs remote controllers or LIBERTY remote switches within 20m;
    Strong signal penetrability and anti-interference performance
    Good for all kinds of loads;
    Lightning protection and surge protection;
    ABS-V0 flame resistance case; and
    High quality build.

  • BRT-690R RF On/Off control box requires both hot wire and neutral wire for installation.

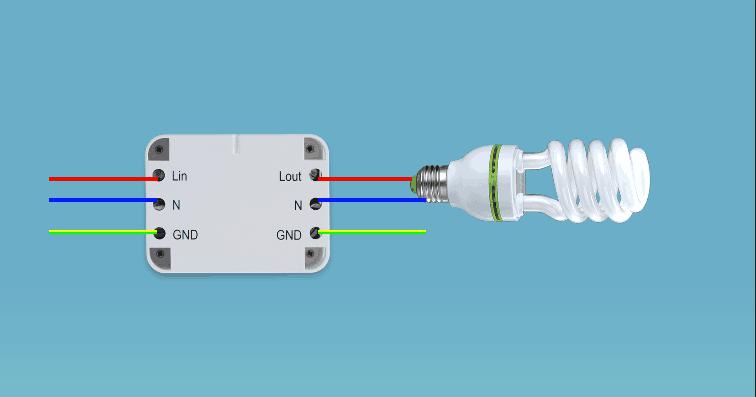

    Fig.3 BRT-690R Wiring Diagram

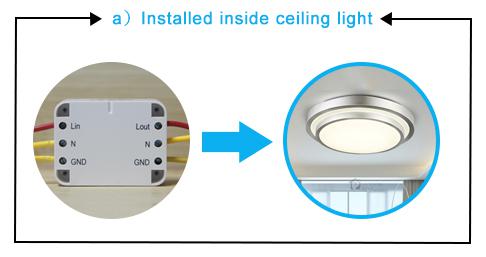

    BRT-690R is usually installed in a hidden space because of its small size and for safety reason. The following are two typical application scenes.

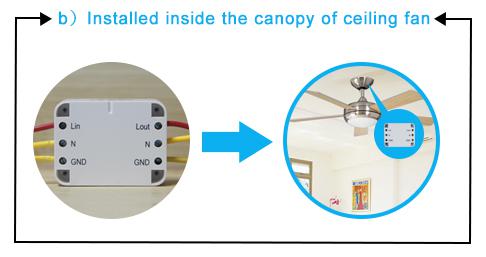

    Fig.4a Install BRT-690R inside the Canopy of Ceiling Fan

    Fig.4b BRT-690R Wiring Diagram


  • 1.Lean Code: after BRT-690R is powered on poke the set button with a needle or sharp object twice the buzzer will sounds”Dee” and then press the button of the remote controller or switch once. When buzzer sounds “Dee” again it means code learning is completed.

    2.Delete Code: poke the set button with a needle or sharp object for 3s until the buzzer sounds “Dee” and the code is deleted successfully.

  • BRT-690R control box can work together with our BRT-690T remote controller or BRT-690S and BRT-690M LIBERTY remote switch to replace the traditional wall mount switches.The users should only install the control box near or inside the load and do not need to make hole to wire and install the LIBERTY remote switches. With our new designed control box and LIBERTY remote control switchthe users can get out of the complicated cabling and save time and money.

    BRT-690R has wide applications at various locations such as homes restaurants conference rooms theaters etc. It is perfect for bringing convenience and safety to our daily life and work.

  • PDF Download:
    Click download >>>>
