BRT-F011-T is a speed control switch which has a built-in micro controller unit.
In addition to a wall mount rotary knob unit for turning on/off the motor and
for adjusting the motor’s speed it also has a handheld remote control.
The wall mount unit is designed for easy installation and
retrofit directly fit into standard wall box with no need for the neutral.
Step-less speed control using wall mount rotary knob or a remote control ;
Memory function. The motor always stars at last speed;
Good for all AC motors;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.

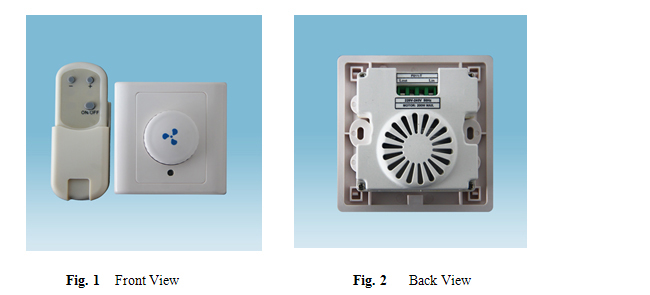

Fig. 1 and Fig. 2 show the front view and the back view of BRT-F011-T rotary knob fan speed
control switch with remote control respectively.
As shown in Fig. 1 and Fig. 2 BRT-F011-T speed control switch set includes a wall mount unit
and remote control. The wall mount unit has a rotary knob and an infrared detector on the front
and wiring terminal blocks on the back. The remote control has three control buttons and a wall
mount bracket.
Hot wire (ACL): Coming from the power line with 220V; and
Load wire: Going to the load.
Warning: Please make sure power is turned off before starting installation!

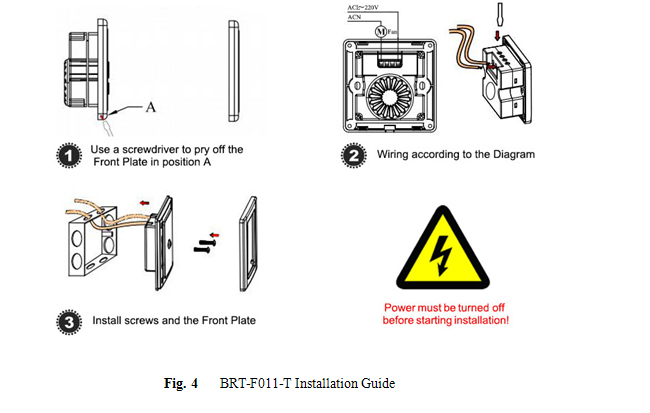

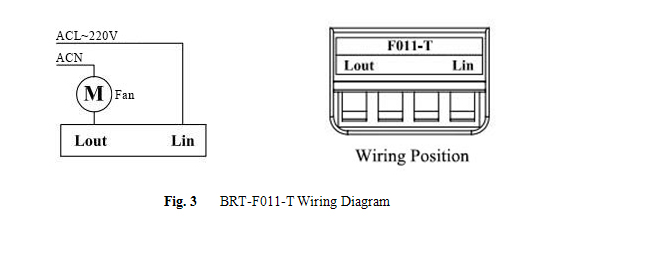

Fig. 3 shows the wiring diagram and Fig. 4 shows the step-by-step installation instructions. There
are three easy steps:
Step one: Use a screwdriver to pry off the front plate in position A;
Step two: Wiring according to the diagram and the labelled ports of the switch; and
Step three: Install screws and front plate.

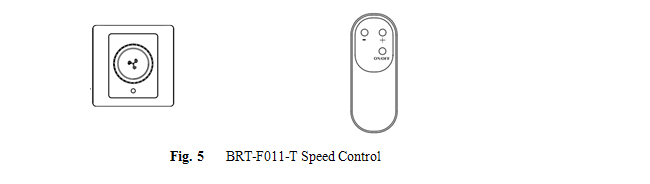

BRT-F011-T speed control switch can be controlled either using the rotary knob of the wall mount
unit or the remote control as shown in Fig 5.
Control using rotary knob: Pressing the knob will turn on the motor at its last speed and
pressing again will turn off the motor. Rotating the knob clockwise will increase the speed and
rotating the knob counter-clockwise will decrease the speed.
Control using remote: Pressing the On/Off button will turn on the motor at its last speed and
pressing again will turn off the motor. Pressing the “+” button will increase the speed and
pressing the “-” button will decrease the speed.
