BRT-F013-T is a speed control switch which has a built-in micro controller unit.
In addition to a wall mount keypad unit it also has a handheld remote control.
The wall mount unit is designed for easy installation and retrofit
directly fit into standard wall box.
Reversible. The user can choose the fan’s rotation direction at will;
5 step speed control using wall mount keypads or a remote control ;
Memory function. The motor always starts at last speed;
Load power up to 400W and good for all AC motors;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.

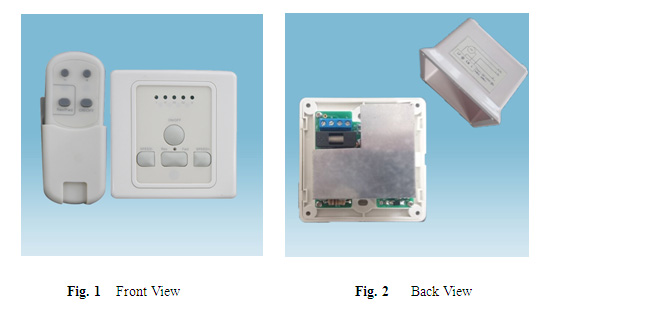

Fig. 1 and Fig. 2 show the front view and the back view of BRT-F013-T reversible fan speed
control switch with remote control respectively.
As shown in Fig. 1 and Fig. 2 BRT-F013-T reversible speed control switch set includes a wall
mount unit and a remote control. The wall mount unit has 4 control keypads 5 speed LED
indicators and an infrared detector on the front and wiring terminal blocks on the back. The
remote control has four control buttons and a wall mount bracket.
BRT-F013-T reversible speed control switch requires four wires for installation:
Hot wire (ACL): Coming from the power line with 220V;
Load wire LR: Going to the load;
Load wire LF: Going to the load; and
Ground: Connected to ground
Warning: Please make sure power is turned off before starting installation!

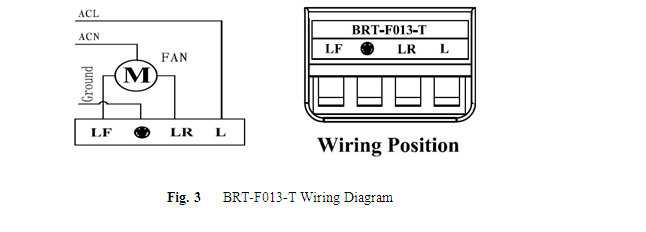

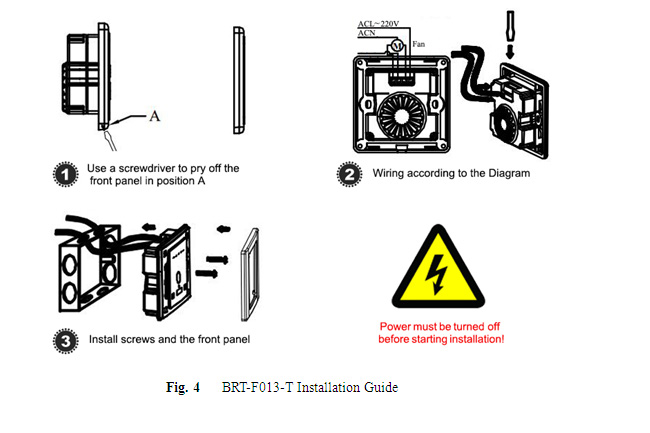

Fig. 3 shows the wiring diagram and Fig. 4 shows the step-by-step installation instructions. There
are three easy steps:
Step one: Use a screwdriver to pry off the front plate in position A;
Step two: Wiring according to the diagram and the labelled ports of the switch; and
Step three: Install screws and front plate.

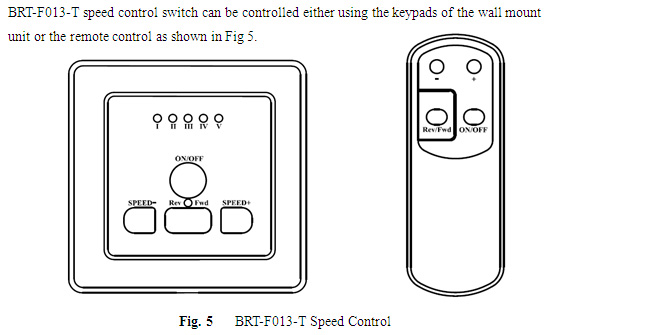

Control using wall mount unit: There are four keypads on the front panel. Pressing each
keypad will turn on or turn off the fan change the fan speed or reverse the fan’s rotation.
On/Off: Pressing once will turn on the fan and pressing again will turn off the fan;
Rev/Fwd: Each pressing will reverse the fan’s rotation;
SPEED+: Each pressing will increase the fan speed; and
SPEED-: Each pressing will decrease the fan speed.
There are 5 speed settings I II III IV and V. The fan will start at speed V for the first time
operation. Then the memory function will enable the fan to always start at last speed and rotation
direction.
Control using remote: There are four buttons on the remote. Pressing each button will turn on
or turn off the fan change the fan speed or reverse the fan rotation.
On/Off: Pressing once will turn on the fan and pressing again will turn off the fan;
Rev/Fwd: Each pressing will reverse the fan rotation;
+: Each pressing will increase the fan speed; and
-: Each pressing will decrease the fan speed.
Again there are 5 speed settings I II III IV and V. The fan will start at speed V for the first time
operation. Then the memory function will enable the fan to always start at last speed and rotation
direction.
