BRT-F603 Fan Speed Control and Light Switch

date:2017-08-18 14:00

The switch controls two lamps and one fan. There is delay off function for the lamps and five speed settings for the fan. Lamp delay off time can be set by the user.

  • Features
  • Views

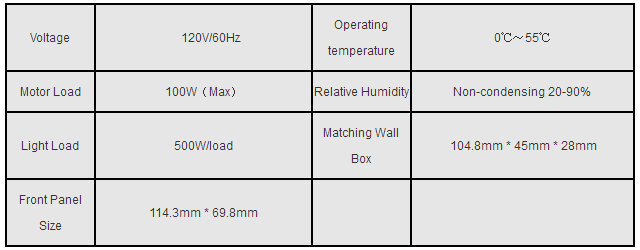

  • Specification
  • Installation
  • Operation
  • Application
  • Download
  • Operates on a 2 wire system and fits in a standard wall box.

    Pressing the middle key ON/OFF turns on/off the fan.

    Keeping pressing the middle key ON/OFF selects the fan speed.
    The fan turns on at last speed setting.
    Pressing the Lamp keys turn on/off the lamps.
    If delay off function has been set when the lamps are on pressing
    the Lamp keys lamps will be turn off after a period.

    Lamp delay off setting: Open the front panel,
    according to the instruction select the delay off time by setting the dip switch.
    Please refer to the right  picture.

    Classical 120 series design artistic and easy installation.

    Wall plate uses flame resistance ABS-V0 material for safety.
