BRT-108 is a glass touch screen timer switch which is controlled by a micro controller unit and
has timing capability for one load. It is designed for easy installation and retrofit directly fit into
standard wall box where both “hot” wire and neutral wire are present.
High quality glass as faceplate luxury and elegant;
Delay-off time of 30 seconds or instant on/off;
Easy to use. A gentle touch will turn on or turn off the load;
Good for all kinds of loads (resistive inductive or capacitive);
Can be used as night light. The button is always lit by blue backlight so it is easy to findeven in the dark;
Costume color and pattern available;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.

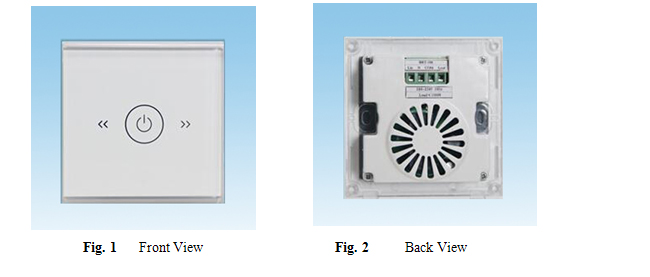

Fig. 1 and Fig. 2 show the front view and the back view of the BRT-108 glass touch screen timer switches respectively.
There is one on/off button on the front and there are wiring terminal blocks on the back. The button is backlit with blue light.
BRT-108 glass touch screen timer switch requires both hot wire and neutral wire for installation:
Hot wire (ACL): Coming from the power line with 220V;
Neutral wire (ACN): Usually coming with the hot wire; and
Load wire: Going to the load.
Warning: Please make sure power is turned off before starting installation!

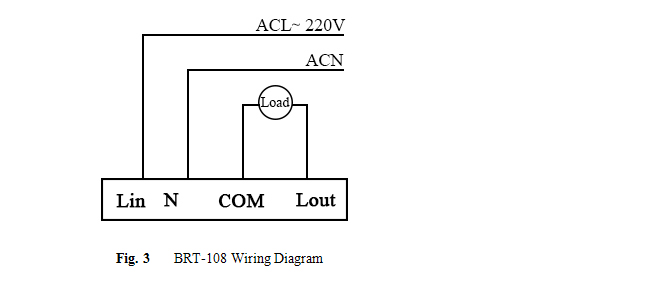

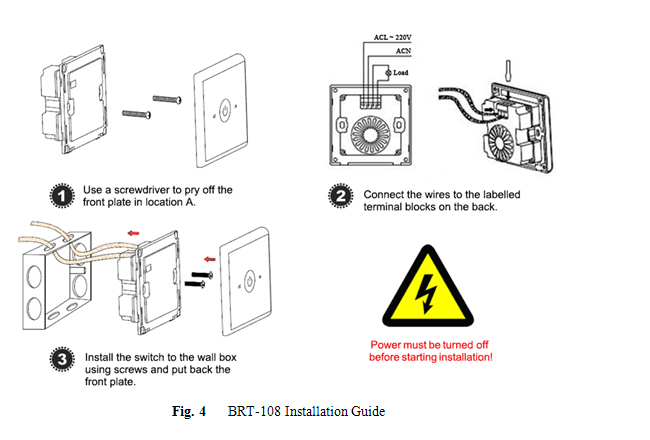

Fig. 3 shows the wiring diagram and Fig. 4 shows the step-by-step installation instructions. There are three easy steps:
Step one: Use a screwdriver to pry off the front plate in position A;
Step two: Wiring according to the diagram and the labelled ports of the switch; and
Step three: Install the switch to the wall box using screws and put back the front plate.
l Switch on/off the load: After BRT-108 is powered on touching the button will turn on or turn off the load respectively (If delay off function is activated the load will be turned off after 30 seconds). When a load is turned on the corresponding button will become brighter in blue.

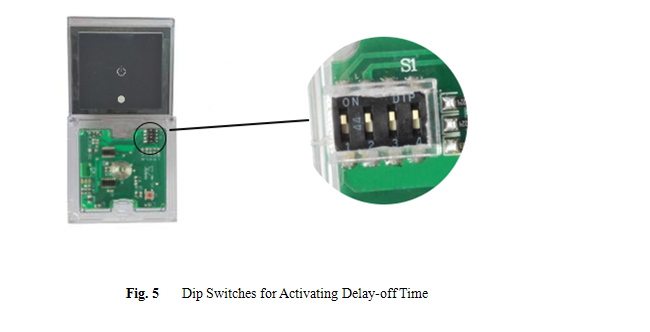

l Set up delay-off function: Use a screwdriver to pry off the front plate to access the dip switches as shown in Fig.5. Switching the first dip switch to on will set up the switch for delay-off operation. The delay-off time is set at 30 seconds at factory. Please talk to our sales representative if other customized settings are required.
l Activate delay-off function: Once the delay-off function is set up touching the on/off button once will turn on the load and touching the on/off button the second time will trigger delay-off for the load. The blue LED indicator will bl
BRT-108 glass touch screen timer switch can be used for automatically turning on and/or turning off various loads especially for high power loads such as fans lights appliances or other kinds of electrical equipment. They are perfect for saving energy and bringing convenience and safety to our daily life and work. They have wide applications at various locations such as homes hotels schools laboratories hospitals offices etc.
