BRT-114 is a glass touch screen timer switch which is controlled by a micro controller unit and has timing capability for three separate loads. It is designed for easy installation and retrofit directly fit into standard wall box with no need for the neutral.
High quality glass as faceplate luxury and elegant;
Control over up to 3 loads. Each load can have a delay-off time of 30 seconds or instant on/off;
Easy to use. A gentle touch will turn on or turn off the load;
Good for all kind of loads (an additional adaptor is needed for capacitive loads);
Can be used as night light. All the buttons are always lit by blue backlights so they are easy to find even in the dark;
Costume color and pattern available;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.

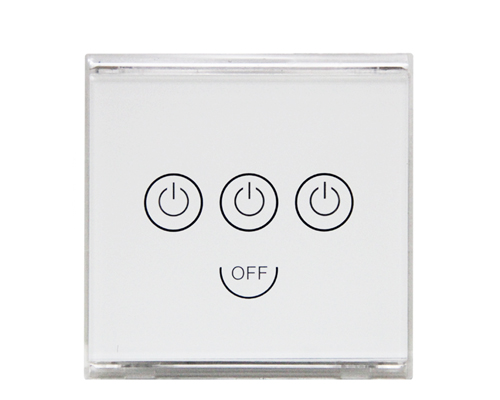

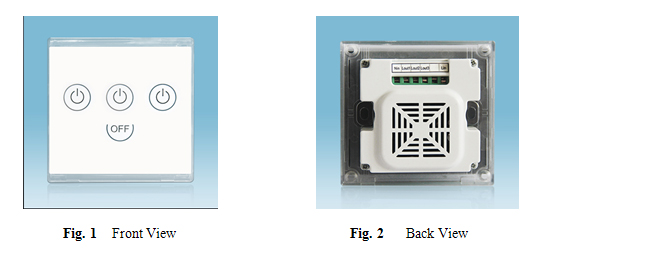

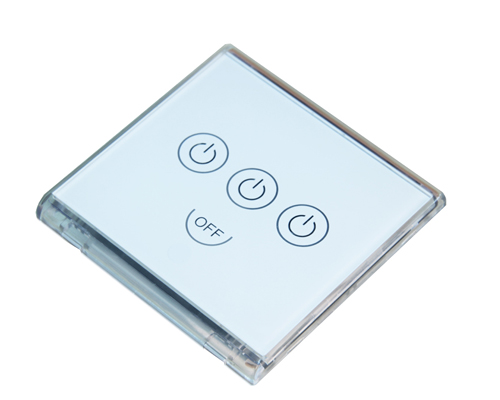

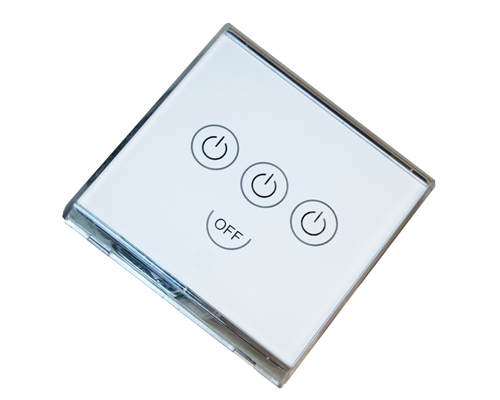

Fig. 1 and Fig. 2 show the front view and the back view of the BRT-114 glass touch screen timer switches respectively.

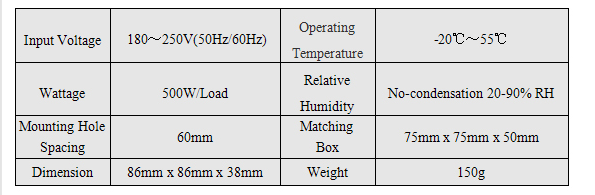

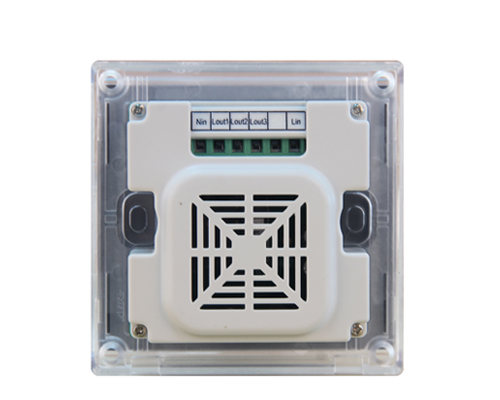

There are three on/off buttons and one Off button on the front and there are wiring terminal blocks on the back. The buttons are backlit with blue lights.
BRT-114 glass touch screen timer switch only requires hot wire for installation:
Hot wire (ACL): Coming from the power line with 220V;
Load wires: Going to the load.
Warning: Please make sure power is turned off before starting installation!

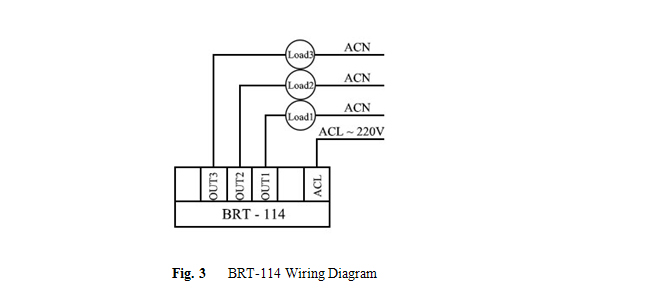

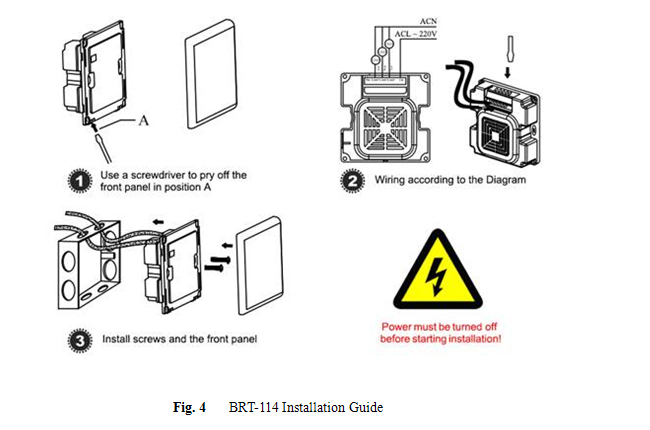

Fig. 3 shows the wiring diagram and Fig. 4 shows the step-by-step installation instructions. There are three easy steps:
Step one: Use a screwdriver to pry off the front plate in position A;
Step two: Wiring according to the diagram and the labelled ports of the switch; and
Step three: Install the switch to the wall box using screws and put back the front plate.
l Switch on/off the load: After BRT-114 is powered on touching each of the 3 on/off buttons will turn on or turn off the loads respectively when the delay-off function is not setup. Touching the Off button will turn off all the loads in the same time. When a load is turned on the corresponding button will become brighter in blue.
l Set up delay-off function: Use a screwdriver to pry off the front plate to access the dip switches as shown in Fig.5. Switching the first 3 dip switches to on will set up each on/off button for delay-off operation respectively.
The delay-off time is set at 30 seconds at factory. Please talk to our sales representative if other customized settings are required.
l Activate delay-off function: Once the delay-off function is set up touching the on/off
button once will turn on the load and touching the on/off button the second time will trigger delay-off for the load. The blue LED indicator will bl
During the delay-off time countdown touching the On/Off button will turn off the load immediately.
BRT-114 glass touch screen timer switch can be used for automatically turning on and/or turning off various loads such as fans lights appliances or other kinds of electrical equipment. They are perfect for saving energy and bringing convenience and safety to our daily life and work . They have wide applications at various locations such as homes hotels schools laboratories hospitals offices etc.
