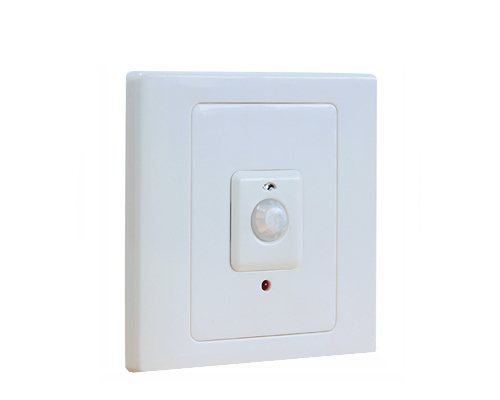

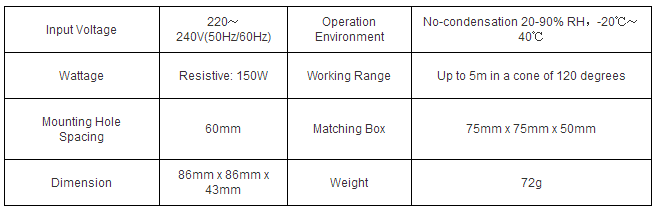

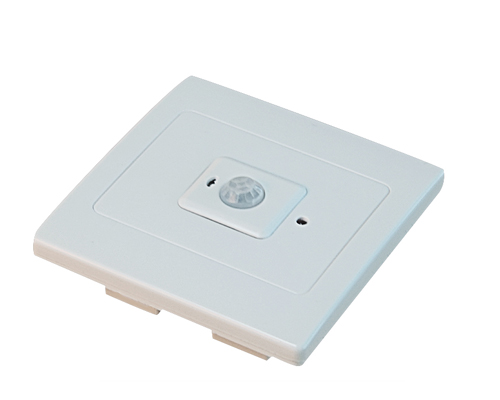

Ambient light override. Automatically measures the ambient light level and there is no trigger on above a light level adjustable by users;
Adjustable delay-off time from 10 seconds to 15 minutes;
Good for all kinds of loads (An additional adaptor required for capacitive loads);
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.
BRT-315 occupancy sensor switch only require hot wire for installation:
Hot wire (ACL): Coming from the power line with 220V;
Load wire: Going to the load.
Fig.3 BRT-315 Wiring Diagram
Warning: Please make sure power is turned off before starting installation!
Fig. 3 shows the wiring diagram and Fig. 4 shows the step-by-step installation instructions. There are three easy steps::
Step one: Use a screwdriver to pry off the front plate in position A;
Step two: Wiring according to the diagram and the labelled ports of the switch; and
Step three: Install screws and front plate.
Fig.4 BRT-315 Installation Guide
Cautions:
1.Avoid mounting the sensor switch close to air vents as the vibration and air flow can reduce the effectiveness of the sensor switch;
2.Avoid installing the sensor switch in an electrical circuit which has other frequent on/off switch or appliance as those on/off actions could cause false triggers.

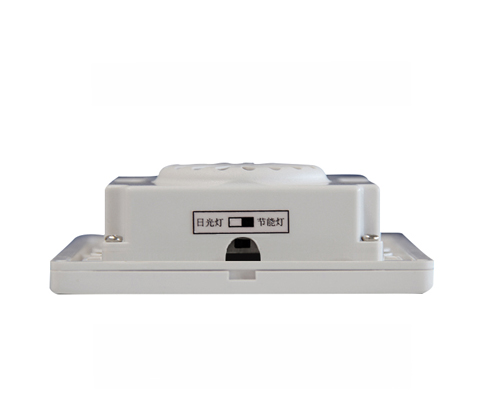

There is a load selection switch on one side of BRT-315 PIR occupancy sensor switch as shown in Fig. 5. For the loads of CFL or Fluorescent Lamp please switch to the right side.
Fig.5 Load Selection Switch
BRT-315 PIR sensor switch needs a warm-up time about two minutes before it can operate properly. It has a precision tuning screw to adjust the ambient light override threshold as shown in Fib. 6 and another precision tuning screw to adjust the delay off time as shown in Fib. 7.
1. Adjust the ambient light override threshold
Please refer to Fig. 6. The fine tuning screw is used to set the ambient light override threshold. Use a screw driver to tune the screw gently.
Caution:The tuning screw can not make a full turn. To avoid possible damage to the screw please do not use strong force to tune it.
a.Counter-clockwise to “+”: increase the threshold so that the PIR triggers will be overridden in bright lighting condition; and
b.Clockwise to “-”: decrease the threshold so that the PIR triggers will not be overridden in dark lighting condition.
Fig.6 Adjustment of Ambient Light Override Threshold
2.Adjust the delay-off time
There is another tuning screw on another side of BRT-315 PIR sensor switch. Use a screw driver to tune this screw to adjust the delay-off time as shown in Fig. 7. The delay-off time can be set from 10s to 15 minutes.
Caution:he tuning screw can not make a full turn. To avoid possible damage to the screw please do not use strong force to tune it.
Fig.7 Adjustment of Delay-off Time
BRT-315 PIR occupancy sensor switch can be used for automatically turning on and/or turning off various loads such as lights fans appliances or other kinds of electrical equipment especially good for high power loads.
BRT-315 PIR occupancy sensor switch is perfect for saving energy and bringing convenience and safety to our daily life and work. It has wide applications at various locations such as stairwells corridors washrooms offices conference rooms in homes schools laboratories hospitals offices etc.
